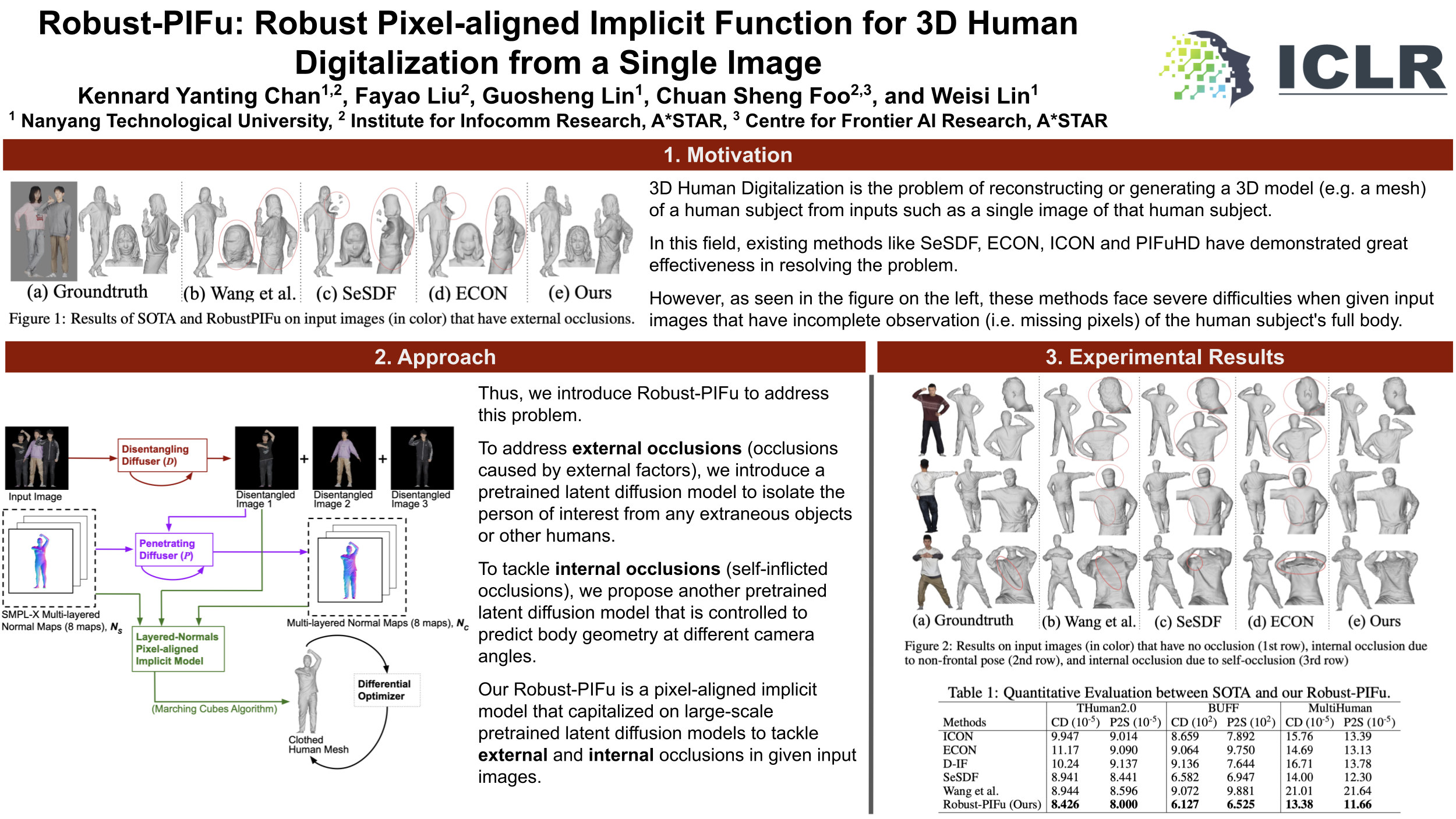

Robust-PIFu: Robust Pixel-aligned Implicit Function for 3D Human Digitalization from a Single Image

Existing methods for 3D clothed human digitalization perform well when the input image is captured in ideal conditions that assume the lack of any occlusion. However, in reality, images may often have occlusion problems such as incomplete observation of the human subject's full body, self-occlusion by the human subject, and non-frontal body pose. When given such input images, these existing methods fail to perform adequately. Thus, we propose Robust-PIFu, a pixel-aligned implicit model that capitalized on large-scale, pretrained latent diffusion models to address the challenge of digitalizing human subjects from non-ideal images that suffer from occlusions.Robust-PIfu offers four new contributions. Firstly, we propose a 'disentangling' latent diffusion model. This diffusion model, pretrained on billions of images, takes in any input image and removes external occlusions, such as inter-person occlusions, from that image. Secondly, Robust-PIFu addresses internal occlusions like self-occlusion by introducing a `penetrating' latent diffusion model. This diffusion model outputs multi-layered normal maps that by-pass occlusions caused by the human subject's own limbs or other body parts (i.e. self-occlusion). Thirdly, in order to incorporate such multi-layered normal maps into a pixel-aligned implicit model, we introduce our Layered-Normals Pixel-aligned Implicit Model, which improves the structural accuracy of predicted clothed human meshes. Lastly, Robust-PIFu proposes an optional super-resolution mechanism for the multi-layered normal maps. This addresses scenarios where the input image is of low or inadequate resolution. Though not strictly related to occlusion, this is still an important subproblem. Our experiments show that Robust-PIFu outperforms current SOTA methods both qualitatively and quantitatively. Our code will be released to the public.
